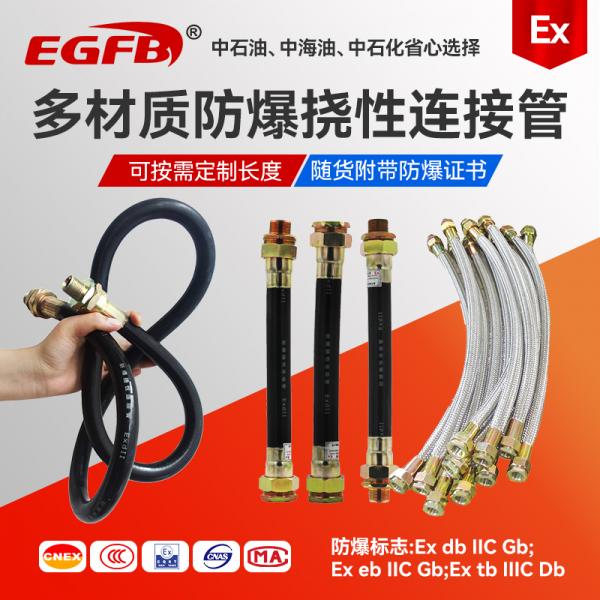

防爆撓性管常規尺寸

型號 管通徑 接頭管螺紋G“ 長度 最小彎曲半徑mm

BNG/NGd-15*500 13 1/2” 500 80

BNG/NGd-15*700 13 1/2” 700 80

BNG/NGd-15*1000 13 1/2" 1000 80

BNG/NGd-20*500 19 3/4” 500 110

BNG/NGd-20*700 19 3/4” 700 110

BNG/NGd-20*1000 19 3/4" 1000 110

BNG/NGd-25*500 25 1” 500 145

BNG/NGd-25*700 25 1” 700 145

BNG/NGd-25*1000 25 1” 1000 145

BNG/NGd-32*500 32 1 1/4" 500 180

BNG/NGd-32*700 32 1 1/4" 700 180

BNG/NGd-32*1000 32 1 1/4" 1000 180

BNG/NGd-40*500 40 1 1/2" 500 210

BNG/NGd-40*700 40 1 1/2" 700 210

BNG/NGd-40*1000 40 1 1/2" 1000 210

BNG/NGd-50*700 50 2" 700 250

BNG/NGd-50*1000 50 2" 1000 250

BNG/NGd-70*700 70 2 1/2" 700 350

BNG/NGd-70*1000 70 2 1/2" 1000 350

BNG/NGd-80*700 80 3" 700 400

BNG/NGd-80*1000 80 3" 1000 400

BNG/NGd-100*700 100 4” 700 500

BNG/NGd-100*1000 100 4” 1000 500

以上是G螺紋尺寸展示，M螺紋、npt螺紋、pg螺紋 市場占有率不高，所以不做列舉。
